航嘉推出JUMPER650B电源:650W铜牌效能、原生直出设计,238元

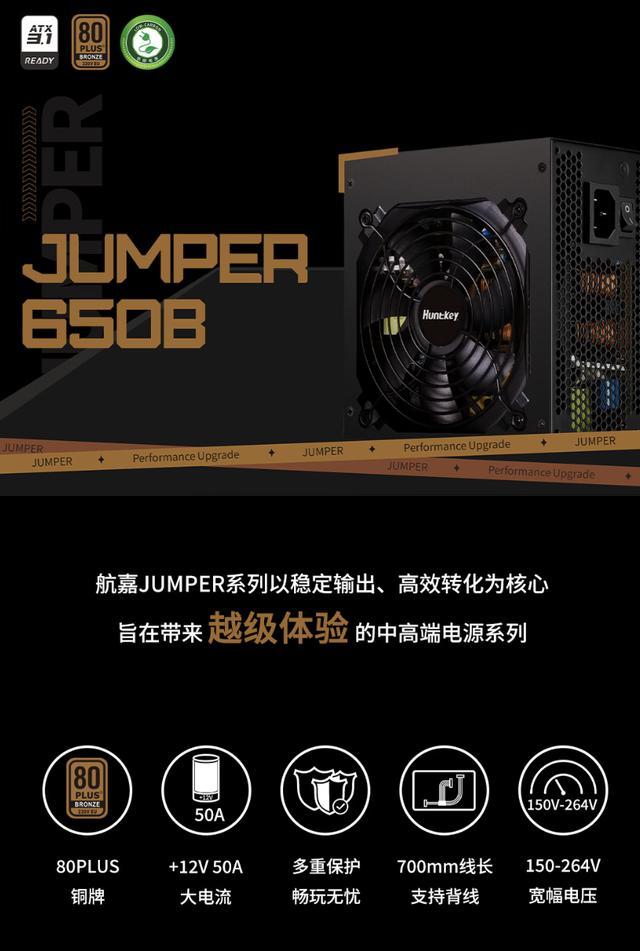

IT之家 9 月 28 日消息,航嘉宣布推出 JUMPER650B 电源,该产品提供 80Plus 铜牌能效,使用原生直出模组线设计,提供 3 年质保,定价为 238 元。

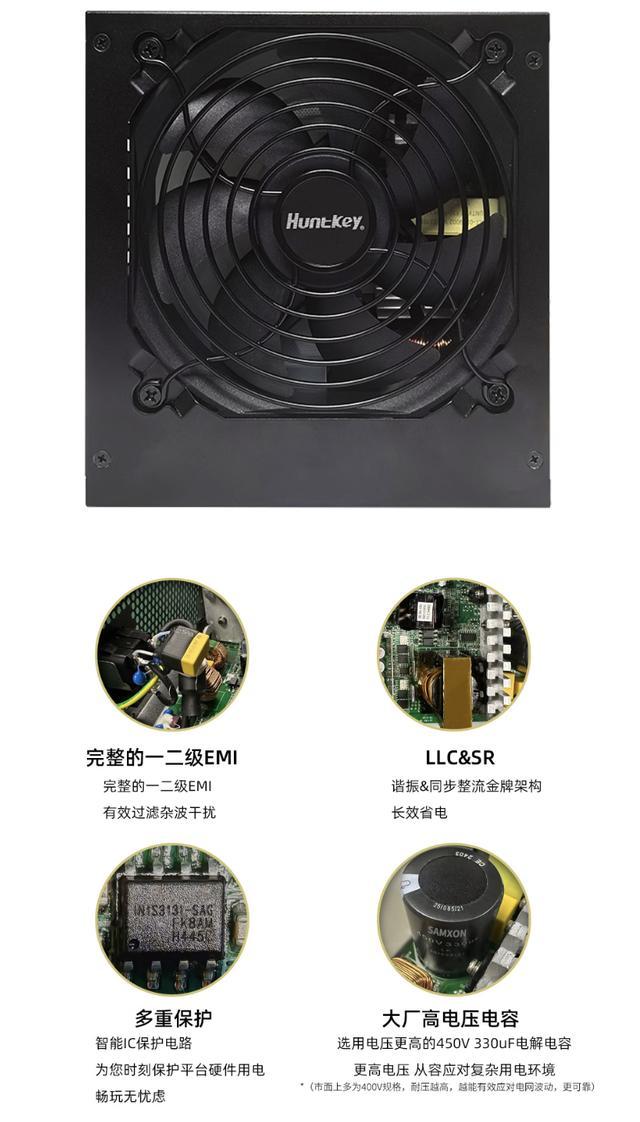

该电源尺寸为 140mm×150mm×86mm,支持 ATX 3.1 设计规范,提供 80Plus 铜牌能效,支持宽幅电压(150-264V)。电源使用主动式 PFC+LLC 谐振 + 同步整流 +DC-DC 设计,拥有完整的一二级 EMI 电路。

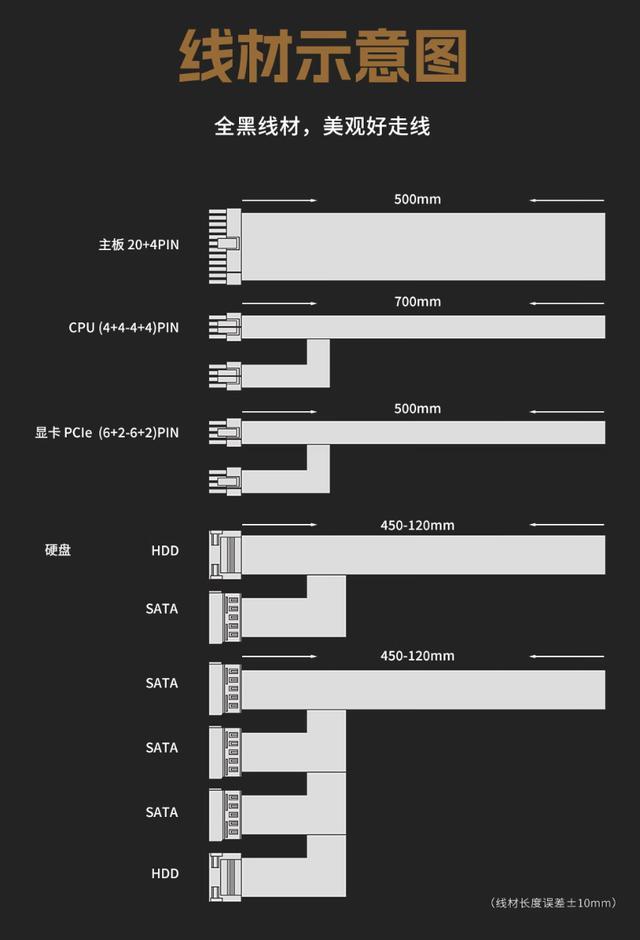

该电源搭载 120mm 7 扇叶液压风扇,风扇轴承处使用了封闭式设计,模组线使用原生直出设计,使用黑色扁排线线套,提供有 1×24Pin 接口(500mm)+2×CPU 8Pin 接口(一拖二设计,总长 700mm)+2×PCIE 8Pin 接口(一拖二设计,总长 500mm)+4 个 SATA 接口以及 2 个 D 型 4Pin 接口(总长 450mm)。

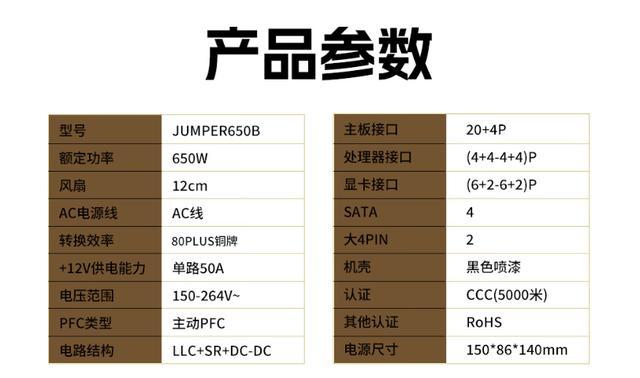

IT之家附产品参数:
